## 3.3: Energy Flow Sheet Functions - Page 2

On page 1:

### The Function mixe with setne and showe

The three programs (mixe, sepe, and reacte) will accomplish both material and energy balances for the three operating units: the mixer, separator, and reactor. A splitter requires essentially no modifications over what was used as split. Before executing these programs, a global array ne must be set with the proper shape. The shape of ne is S by C+3, where S is the number of streams and C is the number of components. The first column of ne stores the stream temperatures with units given in the global variable Tdeg as ('C', 'F', 'R' or 'K'). The second column contains information about the states of the streams. A 0 stored in the second column indicates that the stream is a solid, a 1 indicates that it is a liquid and a 2 indicates it is a vapor. The third column contains the total enthalpy of the stream:

Start301 will set ne to a zero matrix of dimensions S by C+3. This is done after answering the prompt in start301:

Enter the number of streams:

An auxiliary function helps in setting one stream's information in ne. The comments in this function, setne are shown next:

>> help setne

setne: used to set stream properties in ne
function setne(s,i,t,NS,j)
Argument List:
Argument    Gives
s     the state of the stream: 'l' for liquid,
'v' for vapor, 's' for solid.
i     the index of the stream.
t     the stream temperature in units of Tdeg.
NS    the compound molar flow rates (mols/time) for the
compounds with indices j in cnms.
If the last argument is omitted, all compounds are
assumed to be given in NS.
Compounds with indices not in j will be given flow
rates of 0.
Ex. setne('v',2,25,[2 5.5],[2 4])
will set the flows of compounds 2 and 4 as 2 and 5.5 mol/time
respectively.  The rest of the flows will be set to 0.

The first argument is a character vector that must start with 'l' for a liquid, 'v' for a vapor stream or 's' for a solid. A single character is sufficient to designate the state of the stream. The next argument gives the index of the stream; the next its temperature in the units specified by Tdeg and the fourth argument the component flow rates. If there is a fifth argument, it gives the indices of the compounds that you want to set. The rest of the compound flow rates will then be set to zeros. The function sets all C+3 values in the row of data for the stream. Note the use of the global variables cnms (and all its data arrays) and Tdeg by the function. They must be set before setne is executed (the easiest way to do this is with start301).

Remember that an illustration of either a mass or energy module can be accessed by simply typing the prefix pic to each module name.

#### The mixer function: mixe

The mixer function mixe has four arguments as shown in the listing:

function hdif=mixe(s,t,in,out)
% mixe		- Energy balance mixer module
% function hdif=mixe(s,t,in,out)
% Argument List
% Argument    Gives
%    s      the state of the exit stream:
%          'v' for vapor, 'l' for liquid, 's' for solid.
%    t     the temperature of the exit stream in Tdeg.
%   in     the indices of inlet streams,
%   out    the index of exit stream.
% hdif: the answer is the enthalpy out
%    - the sum of the enthalpies in.
% Ex. mixe('v',55,[2 3 4],6)
%     will mix streams 2, 3 and 4 to form stream 6.
%     Stream 6 will be a vapor at 55Tdeg.
% For additional help and picture, see picmixe
% OKB, TYLC
global ne nc
if length(in)<2
ns=ne(in,4:(nc+3));
else
ns=sum(ne(in,4:(nc+3)));
end
j=find(ns);
setne(s,out,t,ns(j),j)
hdif=ne(out,3)-sum(ne(in,3));

The first line after the comments sets the names of global variables used in the program. The next five lines of code determine where the inlet flow rates are stored in ne and sums them to find the component flows in the exit stream. The next line determines which of the exit flows are non-zero so that in the fifth line, we can avoid enthalpy calculations for missing components. The last line finds the difference between the exit and the inlet enthalpies.

The image of mixe is here:

To illustrate the operation of mixe with setne, we will use them to do Example 7.25 on p. 463 of the text. First, set the names of the four compounds: C6H6, C6H5CH3, CH4 and H2 and specify the number of streams for ne with the start301 program. Then our solution of the problem will follow from:

Here are your compounds' formulae and names:
No. Formula Name ---------------------------------------- 1 C6H6 benzene 2 C6H5CH3 toluene 3 CH4 methane 4 H2 hydrogen
Enter the number of streams: 3 >> Tdeg Tdeg = C >> setne ('v',2,400,[400 300 100 200]) <-- Setting stream 2 >> setne(' l',1,20,200,1) <-- Setting stream 1 for a flow of benzene = 200 mol/hr >> mixe('v',200,1:2,3) <-- Mixing ans = -1.5080e+04 <-- The required heat in kJ. needed to be removed >> showe(1:2,3,10,3) Inlet | Outlet Stream 1 2 Total | 3 Tmp C 20.00 400.00 | 200.00 State liquid vapor | vapor Entlpy 9817.8 82532.3 92350.2 | 77270.1 Compound Stream Flows benzene 200.000 400.000 600.000 | 600.000 toluene 0.000 300.000 300.000 | 300.000 methane 0.000 100.000 100.000 | 100.000 hydrogen 0.000 200.000 200.000 | 200.000 Total 200.000 1000.000 1200.000 | 1200.000

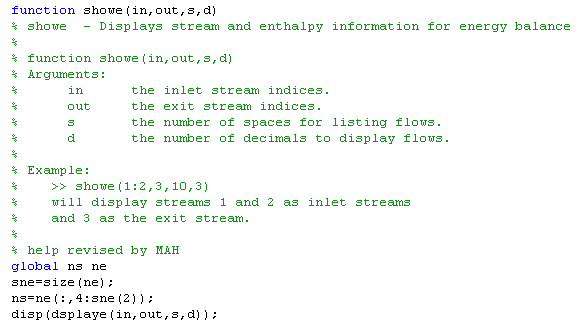

The function showe is used to display the results in a readable form. It is quite short so we can list all of it:

Note that it is short since most of the work is done by the much longer function: dsplaye. The arguments are identical to those with showm. If you wish to peruse the longer function dsplaye, feel free to do so, but you will find that it is the most complicated function in the ~ceng301/matlab/utilities directory. The first argument of showe gives the inlet streams, the second gives the exit streams. The last two arguments set the format for printing flow rates.

>> 77270.1-92350.2   <-- This is the value returned by mixe:
ans =                   enthalpy out - enthaply in
-1.5080e+04
>> type ex725        <-- A function used to find the flow that
function er=ex725(Nbenz)
setne('l',1,20,Nbenz,1)
er=mixe('v',200,1:2,3);

>> ex725(200)        <-- this agrees with what we got for a flow
ans =                   of 200 before.
-1.5080e+04
>> ex725(500)        <-- this gives a positive error.  There must
ans =                   be some flow between 200 and 500 that is
>> ssec2([200 500],'ex725(x)')
ans =
486.7101               <-- The text finds 486.7 kgmol/hr
>> showe(1:2,3,10,3)
Inlet                | Outlet
Stream   1        2      Total   |    3
Tmp C  20.00   400.00            |  200.00
State  liquid   vapor            |  vapor
Entlpy 23892.2  82532.3 106424.6 | 106424.6  <-- enthalpy in =
Compound Stream Flows                           enthalpy out
benzene 486.710  400.000  886.710 |  886.710
toluene   0.000  300.000  300.000 |  300.000
methane   0.000  100.000  100.000 |  100.000
hydrogen  0.000  200.000  200.000 |  200.000
Total   486.710 1000.000 1486.710 | 1486.710

### 3.3.3 Avoiding the Use of Missing Data

Since our data bank has lots of missing data, there are many cases where the computer will generate meaningless enthalpies for compounds. You should always remember that each stream must be a single phase. If some of the compounds in the system being analyzed do not have data that allows us to determine their enthalpies in that phase, then we must avoid telling our programs to include them. The energy modules, try to help with this by determining which compounds in the exit stream(s) have zero flow rates. The modules then call the functions HinkJ and setne with last arguments that will get them to avoid the compounds that are missing. You may have to follow this same procedure. Here is a session to show how this can be done in calling setne. We have two streams and three compounds: CO2, O2 and C. The first stream has just C in it and the second one has CO2 and O2. If we try (after the start301 programs):

<-- Select Celsius for temperature units

Here are your compounds' formulae and names:
No. Formula  Name
----------------------------------------
1 CO2      carbon dioxide
2 O2       oxygen
3 C        carbon
Enter the number of streams: 2
>> setne('s',1,350,[0 0 50])
>> setne('v',2,300,[0 50 0])
>> setne('v',3,500,[50 0 0])
>> showe(1:2,3,10,2)
Inlet              |  Outlet
Stream         1         2   Total   |         3
Tmp C            350.00    300.00           |    500.00
State            solid     vapor            |    vapor
Entlpy              NaN       NaN       NaN |       NaN <-- Note NaNs
Compound    Stream Flows
carbon dioxide      0.00      0.00      0.00 |     50.00
oxygen              0.00     50.00     50.00 |      0.00
carbon             50.00      0.00     50.00 |      0.00
Total               50.00     50.00    100.00 |     50.00

The programs are happy, but we do not get usable values for the enthalpies of the streams. A better procedure in using setne is:

>> setne('s',1,350,50,3)
>> setne('v',2,300,50,2)
>> setne('v',3,500,50, 1)
>> showe(1:2,3,10,2)
Inlet              |  Outlet
Stream         1         2   Total   |         3
Tmp C            350.00    300.00           |    500.00
State            solid     vapor            |    vapor
Entlpy           218.40    419.37    637.78 | -18604.21
Compound    Stream Flows
carbon dioxide      0.00      0.00      0.00 |     50.00
oxygen              0.00     50.00     50.00 |      0.00
carbon             50.00      0.00     50.00 |      0.00
Total               50.00     50.00    100.00 |     50.00

>>

### The Separator Function: sepe

The separator function operates in an analogous manner to the mixer. The user must specify not only the fraction of each compound that goes to the top stream but the temperature and state of each exit stream. A listing of the function sepe is shown next:

function hdif=sepe(stop,sbot,ttop,tbot,in,out,t)
% sepe: energy-balance separator module
% function hdif=sepe(stop,sbot,ttop,tbot,in,out,t)
% Argument List:
% Argument    Gives
%   stop     state of the top stream: 'v', 'l', or 's'.
%   sbot     state of the bottom stream.
%   ttop     the temperature of the top stream in Tdeg.
%   tbot     the temperature of the bottom stream in Tdeg.
%    in      the index of feed,
%    out     the indices of the top and bottom streams
%              in that order.
%     t      the fraction of each compound in the feed
%              that goes to the top stream.
% sepe returns the sum of the enthalpies of the exit
%    streams minus the enthalpy of the feed stream.
% Ex. sepe('v','l',120,150,2,[3 5],[.9 .35])
%    might simulate a fractionator with stream 2 as the
%    feed, 3 as the top product and 5 as the bottom.
%    The top comes off as a vapor at 120Tdeg and gets
%    90% of the first component and 35% of the second.
% For additional help and picture, see PICSEPE
% OKB, TYLC
global ne nc
NS=ne(in,4:nc+3);
NST=NS.*t;
jt=find(NST);
NSB=NS-NST;
jb=find(NSB);
setne(stop,out(1),ttop,NST(jt),jt)
setne(sbot,out(2),tbot,NSB(jb),jb)
hdif=sum(ne(out,3))-ne(in,3);

The first line of code defines globals used by the function. The next line extracts the feed flow rates into the vector NS and puts the flows for the top exit stream in NST. The vector jt stores the indices of the non-zero flow rates in this top stream. The next two lines put the flows for the bottom stream in NSB and the indices of non-zero flows in jb. The function setne is used to set all the flow and state conditions for the exit streams. Finally, the last line determines and returns the difference between the enthalpies out and into the separator.

This is an image of sepe:

Fig. 3.3.1 Energy Balance Separator: sepe

A more general version of the separator module is called sepen. It allows you to have multiple inlet and as many exit streams as you want. Do a help in MATLAB for more information.

The following problem may be readily solved with this separator function. Fifty mols of benzene and toluene at 360K are separated into a top stream that has 95% of the benzene and 5% of the toluene. The top stream exits as a vapor at the normal boiling point of benzene and the bottom stream exits as a liquid at the normal boiling point of toluene. Find the net heat required for this separation.

The simulator solution with sepe follows (after start301 was used to specify the two compounds, choosing Kelvin for temperature:

Input the name of your new file: test2
The output file name is: test2

Here are your compounds' formulae and names:
No. Formula   Name
----------------------------------------
1 C6H6      benzene
2 C6H5CH3   toluene

Enter the number of streams: 3
>> Tdeg
Tdeg =
K
>> ts=TbpK
ts =
353.2610
383.7860
>> setne('l',1,360,[50 50])             <-- Setting stream 1
>> sepe('v','l',ts(1),ts(2),1,2:3,[.95,.05])  <-- Using sepe
ans =
1.7100e+03                          <-- The heat required in kJ
>> showe(1,2:3,10,3)
Inlet      |           Outlet
Stream         1   |        2         3   Total
Tmp K     360.00   |   353.26    383.79
State    liquid    |   vapor    liquid
Entlpy    4028.0   |   4315.3    1422.7    5738.0
Compound    Stream Flows
benzene     50.000   |   47.500     2.500    50.000
toluene     50.000   |    2.500    47.500    50.000
Total      100.000   |   50.000    50.000   100.000

The function sepen allows the user to have multiple inlet and exit streams in a separator. It's help code says:

Sepen: General purpose separator module
function hdif=sepen(s,tmp,in,out,t)
General purpose separator module:
The number of inlet and exit streams can be any integer >0.
Argument List:
Argument    Gives
s       vector of states of the exit stream(s).
('v', 'l', or 's')
tmp     temperatures of exit streams in Tdeg.
in      the indices of the inlet stream(s).
out     the indices of the exit stream(s).
t       The fraction of each compound in the product
that goes into each stream, except that the
last stream need not be given. Each row should
correspond to one exit stream.  If tmp and out
are scalars, t does not need to be given.
sepen returns the sum of the enthalpies of the
exit streams minus the sum of the enthalpies
of the inlet streams.

Example 7.22 in Reklaitis illustrates the use of this program.

The program start301 is used to create the data file E7.22 with data for oxygen and benzene in it. After choosing a New Session, use Energy & Mass Balances in CENG 301's database, using Celsius as the temperature unit.

Input the name of your new file: E7.22
Here are your compounds' formulae and names:
No. Formula  Name
----------------------------------------
1 O2       oxygen
2 C6H6     benzene
Enter the number of streams: 4
>> Tdeg
Tdeg =
C

If we had made a mistake and set the temperature as Kelvin, we can easily change the value stored in Tdeg with the following command line:

>> Tdeg='C';

Set the flow in feed stream 1 using one hour of flow as the basis:

>> setne('v',1,25,100000,1)

Write a simple program to give the error from mixing the two streams and separating them as in the heat exchanger:

function er=ex722(FB)
global mw
% The flow of benzene is FB kg/hr, it's temperature is 250C.
setne('v',2,250,FB*1000/mw(2),2)
% The benzene out of the exchanger is saturated at 5.5bar or 550 kPa.
t4=teql(550);
% Stream 3 is a vapor at 200C, stream 4 is a liquid at t4(2)
% All the O2 goes into stream 3, none of the benzene goes into that stream.
er=sepen('vl',[200, t4(2)],1:2,3:4,[1 0]);

find a range in which there is a sign change:

>> ex722(100)
ans =
4.7360e+05
>> ex722(2000)
ans =
-5.2541e+05

Use ssec2 to find the required amount of benzene:

>> ssec2([100 2000],'ex722(x)')
ans =
1.0007e+03

That's close to the value of 1050 kg/hr found in the text. Here is what all the streams look like:

>> showe(1:2,3:4,9,0)
Inlet            |          Outlet
Stream        1        2   Total  |        3        4   Total
Tmp C     25.00   250.00          |   200.00   147.05
State    vapor    vapor           |   vapor   liquid
Entlpy        0  1390323  1390323 |   526178   864145  1390323
Compound    Stream Flows
oxygen    100000        0   100000 |   100000        0   100000
benzene        0    12811    12811 |        0    12811    12811
Total      100000    12811   112811 |   100000    12811   112811

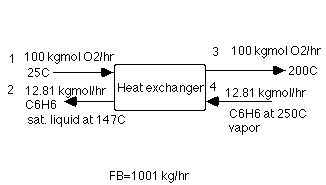

Here is the data found by use of sepen with the trial and error function: ssec2 shown on the flow diagram for the example:

The flow direction of the benzene has been reversed in this picture since it would certainly require counter current flow in the exchanger to have heat transfer from the benzene to the oxygen at all points.

Note that sepen can be used with any number of inlet and exit streams, it is not limited to just two of each as in this example.

### The Splitter Function: splite

The function splite can be used in two ways. The simple splitting operation requires no energy balance since each outlet from the splitter has the same state, temperature, and mass/mole fractions as the feed. For this case splite does the same thing as split, except the state and temperature in ne are kept.

A picture of splite: Help on splite gives:

>> help splite

splite: energy-balance splitter module
function hdif=splite(t,in,out,s,tmp)
Argument List
Argument      Gives
t     the fraction of the inlet stream
that goes to each exit stream.
in     the index of the inlet stream.
out    the indices of the exit streams.
s     the states of the exit streams.
tmp    the temperatures of the exit streams.
The last two arguments are optional. Without them this works as a
normal splitter. With them splite can be used as a sort of heat
exchanger on the exit streams.
Ex:  splite([.2 .2 .2 .2 .2],1,2:6)
would split stream 1 into 5 equal parts in streams 2 through 6,
all with the same state and temperature as stream 1.
Ex:  splite([.2 .3 .5],1,2:4,'vvl',[400 300 200])
would split stream 1 into streams 2, 3 and 4.
Stream 2 would get 20% of the flow, as a vapor at 400 Tdeg,
stream 3 would get 30% as vapor at 300 Tdeg,
and stream 4 would get the remaining 50% as liquid at 200 Tdeg.
Splite returns the enthalpy difference between the inlet and outlet
streams, which should be zero unless the last two arguments are given.
For additional help and picture of Ex. #2 , see PICSPLITE
JWD, TYLC

### The Reactor Functions: reacte, reacten

The function reacte simulates the behavior of a reactor and computes material and energy balances for the process. Before executing reacte, the arrays ne, Tdeg, cnms as well as the stoic array for the reactions must be set. A listing of reacte is shown below:

function hdif=reacte(s,tmp,in,out,rs)
% Reacte: basic energy-balance reactor module (only one exit stream)
% function hdif=reacte(s,tmp,in,out,rs)
% Basic reactor module that includes an energy balance,
%   only one exit stream is allowed.
% Argument List:
% Argument    Gives
%    s       state of the exit stream: 'v', 'l', or 's'
%    tmp     temperature of exit stream in Tdeg.
%    in      the indices of the inlet streams!
%    out     the index of the exit stream.
%    rs      the reaction rates.
%  reacte returns the enthalpy of the
%     exit stream minus the sum of the enthalpies
%     of the inlet streams.
% EX:  reacte('v',920,[1 2],3,0.225);
% For additional help and picture see PICREACTE
%  JWD, SHD & OKB, TYLC
global ne stoic
sne=size(ne);
nc=sne(2)-3;
NS=sum([ne(in,4:(nc+3));zeros(1,nc)]);
nout=NS+(rs*stoic);
j=find(abs(nout)>eps);
setne(s,out,tmp,nout(j),j)
hdif=ne(out,3)-sum(ne(in,3));

The first three lines of code sums the inlet flows (if there is more than one inlet stream) and puts the result into NS . It then uses a matrix multiply to find the effect of the reactions on these flows to produce the outlet flow rates. The vector, j, indicates the indices of the non-zero flow compounds in the exit stream. The function setne is then called to set the outlet flows and other data and the difference between the exit and inlet enthalpies returned in hdif.

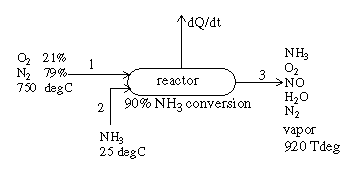

The graphic for reacte

We will work the example problem 8.6 in the text to illustrate reacte. At the same time, we will show why the three functions were defined to return the net heat input to the unit.

First we need to set the arrays cnms, stoic and Tdeg and then initialize ne. Execute start301 to specify the five compounds:

Input the name of your new file:noreact
Here are your compounds' formulae and names:
No. Formula  Name
----------------------------------------
1 NH3      ammonia
2 O2       oxygen
3 NO       nitric oxide
4 H2O      water
5 N2       nitrogen

----------------------------------------
1)  4NH3  + 5O2    --> 4NO   + 6H2O

Enter the number of streams: 3

>> Tdeg='C';             <-- Working in °C

Next we can set the known flow streams:

>> setne('v',1,750,2.4*[1,79/21],[2 5])    <-- The air in 1
>> setne('v',2,25,1,1)                       <-- The ammonia in 2

Now react the two streams for a given exit temperature and conversion:

>> reacte('v',920,[1 2],3,.225)          <-- Reacting 1 and 2
ans =
-94.8887                                    <-- Reactor Result
>> showe(1:2,3,10,5)
Inlet              |  Outlet
Stream         1         2   Total   |         3
Tmp C                   750.00     25.00           |    920.00
State                   vapor     vapor            |    vapor
Entlpy                 257.057   -45.690   211.367 |   116.478
Compound    Stream Flows
ammonia                  0.00000   1.00000   1.00000 |   0.10000
oxygen                   2.40000   0.00000   2.40000 |   1.27500
nitric oxide             0.00000   0.00000   0.00000 |   0.90000
water                    0.00000   0.00000   0.00000 |   1.35000
nitrogen                 9.02857   0.00000   9.02857 |   9.02857
Total                   11.42857   1.00000  12.42857 |  12.65357

Note that our answer is returned by reacte as a negative 94.88 kJ per mol of NH3 added to the reactor. This is the same as 22.68 kcal/mol NH3 removed from the reactor and may be compared with 22.53 kcal/mol NH3 found in the text.

From convu:
94.88000 kJ/(mol) = 22.67727 kcal/(mol)

Note that even reacte forces you to have a single exit stream. If your reactor has two or more product streams, you must use a combination of reacte followed by one or more uses of sepe. This is what reacten does. Since the sepe module can handle two exit streams with different states, this makes the modules capable of handling all the common cases that you want. Again, the help explains how reacten is different from the other reactors.

>> help reacten

function hdif=reacten(s,tmp,in,out,rs,t)
General purpose reactor module:
The number of inlet and exit streams can be any integer >0.
Argument List:
Argument    Gives
s       vector of states of the exit stream(s).
('v', 'l', or 's')
tmp     temperatures of exit streams in Tdeg.
in      the indices of the inlet stream(s).
out     the indices of the exit stream(s).
rs      the reaction rates.
t       The fraction of each compound in the product
that goes into each stream, except that the
last stream need not be given. Each row should
correspond to one exit stream.  If tmp and out
are scalars, t does not need to be given.
reacten returns the sum of the enthalpies of the
exit streams minus the sum of the enthalpies
of the inlet streams.
Ex: reacten('vs',[312 25],1:2,3:4,[.94 0.21],[1 1 0]);
JWD, SHD & OKB, TYLC

This is the picture of reacten:

Example 8.4

Example 8.4 in the Reklaitis text illustrates both the use of reacten and the way in which data for missing compounds may be inserted into the user's data bank with the program addcomp. The compound benzaldehyde is not among the compounds currently stored in the ceng301 data bank so we need to add information about it.

Choose a database to edit  <-- brings up the menu
We choose 301 Mass & Energy Balance and see next the very long menu

<-- Our choice from the first menu is 301 Mass &
Energy Balance

We can enter as much data as we need into this the new data bank from this menu. From the statement of the example problem we know or can find by changing units the following:

 Information Array name Units Data Name cnms benzaldehyde Formula form C6H5CHO Molecular Weight mw 106.124 Latent Heat of Vaporization at normal boiling point LhlvkJ kJ/mol 38.39 Normal Boiling Point TbpK K 452.15 State of compound used in setting its "Standard" Heat of Formation Ststdh 1 meaning liquid "Standard" Heat of Formation StdhkJ kJ/mol 0 assumed and to be found Coefficients in polynomial giving the Specific Heat of Liquid cpl J/mol/K [189.86 0 0 0] Coefficients in polynomial giving the Specific Heat of Vapor cpv J/mol/K [129.7 0 0 0 0]

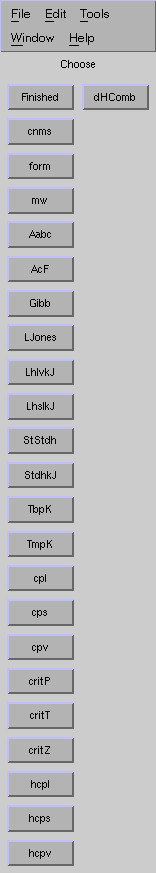

To input each type of data, we click on the button with the array name we want. If we start with: For example to enter the compound name, we click on the cnms button and get the following message and give the name:

cnms= ? benzaldehyde

Then follow it by clicking on the appropriate buttons and entering all the data in the table as follows:

form= ? C6H5CHO
Give a vector of length 1
mw= ? 106.124
Give a vector of length 1
LhlvkJ= ? 38.39
Give a vector of length 1
StStdh= ? 1
Give a vector of length 1
StdhkJ= ? 0
Give a vector of length 1
TbpK= ? 452.15
Give a vector of length 4
cpl= ? [189.86 0 0 0 ]
Give a vector of length 5
cpv= ? [129.7 0 0 0 0]

When we click on the Finished button we will see:

stdat2=
1x135 struct array with fields:
cnms
...
...
dHComb

We need to save the augmented structure for use in start301.

>> save ex84
>> start301
Then choose from the next menu: New Session
and then: Energy & Mass Balances
Enter the name of your database: ex84

Which units do you want to use for temperature?
Choose the temperature unit: Celcius
Input the name for a new file or just hit a return:
Input the number of compounds: 5
The number of compounds is: 5

Enter the name of compound # 1: C6H5CHO  <-- This data base knows about benzaldehyde.

We can continue with a normal 301 session to set the other four compounds and the reactions until we see:

Here are your compounds' formulae and names:
No. Formula Name
----------------------------------------
1 C6H5CHO benzaldehyde
2 C6H5CH3 toluene
3 O2      oxygen
4 H2O     water
5 CO2     carbon dioxide

----------------------------------------
1) C6H5CH3 + O2 --> C6H5CHO + H2O       <-- reaction we want the dH for
2) C6H5CHO + 8O2 --> 3H2O + 7CO2 <-- reaction we know the heat of combustion for

>> intcp <-- we need to use this to set up icpl and icpv
>> sethcp <-- this then sets the hcpl and hcpv vectors
>> StdhkJ
StdhkJ =
0    <-- The value for this is what we need to find first using the given
50.0000  heat of combustion for the compound at 18C
0
-241.8300
-393.5000

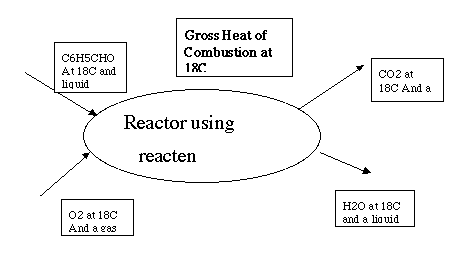

The heat of combustion for benzaldehyde is given at 18°C. This is the difference between the enthalpies of the products and the enthalpies of the feed to a reactor. We have to be careful to specify the state of the compounds as seen in the stoichiometric equation that defines the heat of reaction. In Example 8.4 this reaction is given as:

C6H5CHO(l) + 8O2(g) --> 3H2O(l) + 7CO2(g)

Thus we will set one mol of benzaldehyde as a liquid in stream 1 and 8 mols of oxygen in stream 2 as a gas. Then if we react all of them by a unit amount of reaction 2 to produce one stream with liquid water and one with vapor carbon dioxide, we will be carrying out the reaction as specified.

>> setne('l',1,18,1,1) <-- one mol of liquid benzaldehyde at 18C in stream 1
>> setne('v',2,18,8,3) <-- 8 mols of vapor O2 at 18C in stream 2
>> reacten('vl',[18 18], 1:2,3:4,[0 1],[1 1 1 0 1]) <-- vapor at 18C in stream 3
ans =                          liquid water at 18C in stream 4, 0 rxn 1, 1 rxn 2
-3.6118e+03          <-- calc. heat of rxn 2 using 0 for St dH liq benzaldehyde
841.3000 kcal/(mol) = 3519.937 kJ/(mol) <-- heat of rxn 2 given in the example
>> ans + 3519.937
ans =
-91.8504             <-- required Heat of Formation of banzaldehyde
22.11000 kcal/(mol) = 92.50659 kJ/(mol) <-- from the text
>> StdhkJ(1)=-91.8504    <-- replacing the 0 in StdhkJ(1)
StdhkJ =
-91.8504
50.0000
0
-241.8300
-393.5000

Now let's check to see that reacten really gives the heat of combustion given in the example.

>> sethcp   <-- using the new value of the heat of formation in the hcp vectors
>> setne('l',1,18,1,1)               <-- recalculating the enthalpy of stream 1
>> reacten('vl',[18 18], 1:2,3:4,[0 1],[1 1 1 0 1]) <-- executing reacten again
ans =
-3.5199e+03              <-- This now agrees with the given heat of combustion
>> showe(1:2,3:4,10,3)      <-- Making sure that we carried out the combustion
Inlet | Outlet                  reaction
Stream           1     2  Total |   3     4       Total
Tmp C          18.00 18.00      | 18.00 18.00
State        liquid vapor       | vapor liquid
Entlpy         -93.2 -1.6 -94.8 | -2756.3 -858.5 -3614.8
Compound Stream Flows
benzaldehyde   1.000 0.000 1.000 | 0.000 0.000  0.000
oxygen         0.000 8.000 8.000 | 0.000 0.000  0.000
water          0.000 0.000 0.000 | 0.000 3.000  3.000
carbon dioxide 0.000 0.000 0.000 | 7.000 0.000  7.000
Total          1.000 8.000 9.000 | 7.000 3.000 10.000

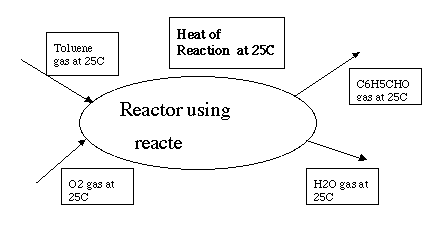

Turning attention to finding the heat of the first reaction at 25C. It was specified as:

C6H5CH3(g) + O2(g) --> C6H5CHO(g) + H2O(g)

>> setne('v',1,25,[1 1],2:3) <-- one mol each of vapor toluene & O2 in stream 1
>> reacte('v',25,1,2,[1 0])  <-- reacting all of the O2 and toluene to form vapor
ans =                            products
-336.0258                   <-- The heat of reaction in kJ/mol
>> showe(1,2,12,3)           <-- Making sure we carried out the reaction as
Inlet | Outlet      specified
Stream        1   |   2
Tmp C       25.00 | 25.00
State       vapor | vapor
Entlpy       50.0 | -286.0
Compound Stream Flows
benzaldehyde 0.000 | 1.000
toluene      1.000 | 0.000
oxygen       1.000 | 0.000
water        0.000 | 1.000
Total        2.000 | 2.000
336.0258 kJ/(mol) = 80.31352 kcal/(mol) <-- the text reports the value: 56.56

A corrected sign error in the book shows they should have found 80.46. We can show the agreement with the book is excellent except for the last value of the heat of reaction.

>> HinkJ(25,'v',1)-HinkJ(25,'l',1) <-- latent heat of benzaldehyde at 25C
ans =
47.6546
47.65460 kJ/(mol) = 11.38993 kcal/(mol) <-- text: 11.4
>> HinkJ(25,'v',1)    <-- heat of formation of benzaldehyde vapor at 25C
ans =                     is exactly what HinkJ gives us.
-44.1958
44.19580 kJ/(mol) = 10.56324 kcal/(mol) <-- text: 10.71

Problem 8.28

Note that while reacten could be used with any separation, normally the separation will just be used to separate compounds with different states into separate streams. Here is an example of solving problem 8.28 in Reklaitis.

Basis: 100 mols air in stream 1.
Reactions:

1) CaCO3(s) --> CaO(s) + CO2(g)

2) C(s) + O2(g) --> CO2(g)

With N4 as the molar flow in stream 4 (the product lime stream)
we can set balances in all streams as:

Inlet            Exit
Compound/Stream  1      2        3        4
1  O2            -      21       -        -
2  N2            -      79       79       -
3  C           21+.05N4  -       -      .05N4
4  CaO           -       -       -      .94N4
5  CaCO3         .95N4   -       -      .01N4
6  CO2           -       -     21+.94N4   -

Rate of reactions: 1) .94N4 the rate of production of CaO
2) 21  to consume all entering O2

Before we solve it, we must write a short function to iterate with ssec2 (calling N4: x as the single unknown):

function err=exr828(x)
%
% this function solves problem 8.28 in Reklaitis using reacten,
% when iterated with ssec2
%
setne('s',1,25,[.05*x+21 .95*x],[3 5])
err=reacten('vs',[315.6 950],1:2,3:4,[.94*x 21],[1 1 0 0 0 1]);

Notes:

a) in the first line the flows of C and CaCO3 are set as shown in the table.
b) in the second line the reactions are carried out after streams 1 & 2 are mixed and followed by a separation of the product into the vapor stream (3) at 600C with N2 and CO2 in it and the solid stream (4) at 950C.

Then we can solve the problem after using start301 by:

Here are your compounds' formulae and names:
No. Formula  Name
----------------------------------------
1 O2       oxygen
2 N2       nitrogen
3 C        carbon
4 CaO      calcium oxide
5 CaCO3    calcium carbonate
6 CO2      carbon dioxide

----------------------------------------
1)  CaCO3   --> CaO    + CO2
2)  O2     + C       --> CO2

Enter the number of streams: 4

>> Tdeg='C';
>> setne('v',2,25,[21 79],1:2)		<-- set the feed
>> exr828(25)
ans =
-1.5920e+03
>> exr828(35)   <-- There must be a root in the interval 25->35
ans =
702.0396
>> ssec2([25 35],'exr828(x)')
ans =
31.9398
>> exr828(ans)
ans =
0
>> showe(1:2,3:4,10,2)
Inlet              |            Outlet
Stream     1        2   Total  |     3        4     Total
Tmp C             25.00  25.00          |   315.56   950.00
State             solid   vapor         |   vapor     solid
Entlpy      -36620.68    0.00 -36620.68 |-18770.19 -17850.49 -36620.68
Compound    Stream Flows
oxygen               0.00   21.00   21.00 |    0.00     0.00    0.00
nitrogen             0.00   79.00   79.00 |   79.00     0.00   79.00
carbon              22.60    0.00   22.60 |    0.00     1.60    1.60
calcium oxide        0.00    0.00    0.00 |    0.00    30.02   30.02
calcium carbonate   30.34    0.00   30.34 |    0.00     0.32    0.32
carbon dioxide       0.00    0.00    0.00 |   51.02     0.00   51.02
Total               52.94  100.00  152.94 |  130.02    31.94  161.96

>> 30.34/22.60
ans =
1.3425

Thus the ratio we need is about 1.34 moles CaCO3 for every mole of C.

## Go Back to Page 1

[Go to previous section: 3.2| Go to next section: 3.4]
