Section 1.3: Part 1, Part 2, Part 3



Part 3


1.3.7 The Mixer Function: mix

The function mix simulates the behavior of a mixer. Two arguments must be given to mix: in and out, give the indices of the inlet streams and the index of the outlet stream, respectively.

The help notes for a mixer show:

  mix    - Mass balance mixer module
  function mix(in,out)
  Simulates the behavior of a mixer.
  Argument   Gives
     in    the indices of the inlet streams.
    out    the index of the exit stream.
  mix mixes all the inlet
  streams to make the outlet stream.
  For additional help and picture, see PICMIX
  OKB, TYLC
  Example: >> mix(1:2,3)


Section 5.3 gives a full listing and diagram of a mixer.


Fig. 1.3.3 Mass Balance Mixer: mix

Note how simple this operation is in MATLAB. The sum function operates over the first index to produce just what we want.

>> help sum
   SUM     For vectors, SUM(X) is the sum of the elements of X. For
	   matrices, SUM(X) is a row vector with the sum over each
	   column. SUM(DIAG(X)) is the trace of X.

To illustrate the operation of mix, consider the following problem. One hundred pounds of a 20 percent (by weight) NaOH solution is mixed with fifty pounds of 10 percent NaOH solution and 200 pounds of water. Find the composition of the resulting mixture.


There are 3 inlet streams and one outlet stream so the in vector is:
[1 2 3] or 1:3

Note that the mix module may be used for compound flows in either molar or mass units. All flows must be in the same units, but that is the only requirement. In this problem the flows are given in mass units so we will find it easiest to specify all flows as pounds. We put the names: sodium hydroxide and water in cnms with start301 and initialize ns with the given flows in the inlet streams (NaOH is component 1 and water is component 2).

   >> start301
   1: Click (1) to start a new session
   2: Click (2) to enter the name of a datafile from
      a previous session, in the current directory
   3: Click (3) to use compound names not in the CENG 301 database
      WARNING...if you hit (3) no compound data will be available

<-- Choose (3) Other

You have chosen to not use any compound data If you wish to enter data for a compound, exit (control-C) then execute "create", then run a "new session", choice (1) Enter the number of compounds:
2 Compound names must be less than 25 characters long! Give the name of compound # 1: sodium hydroxide Compound names must be less than 25 characters long! Give the name of compound # 2: water Enter the number of streams: 4 >> ns(1:3,:)=[20 80;5 45;0 200] ns = 20 80 5 45 0 200 0 0


Execute mix.

   >> mix(1:3,4)


Let's check ns.

   >> showm(1:3,4,10,1)
   Compound                 Inlet                   |  Outlet
     Stream           1       2       3      Total  |         4
   sodium hydroxide 20.0     5.0     0.0      25.0  |      25.0
   water            80.0    45.0   200.0     325.0  |     325.0
   Total           100.0    50.0   200.0     350.0  |     350.0


The outlet stream is ns(4,:). Its weight fraction of NaOH is:

      25/350 or 0.07142857143

Therefore, the mixture is 7.14 percent NaOH. We can put our results in a typical flow table involving a mixer.

Plant with a Mixer

Table of Mass Flow Rates

Comp No.
Name

1
Sodium
Hydroxide

2
Water

Total

Stream
Number

From Unit*

To Unit*

1


Mixer

20

80

100

2

Mixer


5

45

50

3

Mixer


0

200

200

4

Mixer


25

325

350


A mass balance furnishes all the relations required to analyze a mixer if we know all the flows in the inlet streams.


1.3.8 The Reactor Function: react

The function react simulates the behavior of a reactor. Three arguments must be given react:

1) r, is the vector of reaction rates. It has one element for systems with one reaction, and N elements for systems with N reactions;
2) in, gives the index of the inlet stream;
3) out, gives the index of the outlet stream.

Here are the help notes for react:


  React: mass-balance module for simulating a reactor
  function react(r,in,out)
  Simulates the behavior of a reactor.
  Argument    Gives
     r      the vector of reaction rates
     in     the index of the inlet stream(s)
     out    the index of the outlet stream
  The global variable: stoic is a matrix giving the
    coefficient of the ith compound in the jth
    reaction as: stoic(i,j).
  For additional help and picture, see PICREACT
  OKB, TYLC
  Example: >> react(10,1,2)
     would treat stream 1 as the inlet and stream 2
     as the exit.  There must be only 1 reaction
     and its rate is 10.

The diagram and full listing of react is in section 5.4.


Fig. 1.3.4 Mass Balance Reactor: react

Session Used to Produce Results in Fig. 1.3.4

   >> start301
   Copyright 1998 Rice University
   All rights reserved

   1: Click (1) to start a new session
   2: Click (2) to enter the name of a datafile from
      a previous session, in the current directory
   3: Click (3) to use compound names not in the CENG 301 database
      WARNING...if you hit (3) no compound data will be available

        <-- Choose (3) Other

   You have chosen to not use any compound data
     If you wish to enter data for a compound, exit (control-C)
   then execute "create", then run a "new session", choice (1)

   Enter the number of compounds: 5
   Compound names must be less than 25 characters long!
   Give the name of compound # 1: A
   Compound names must be less than 25 characters long!
   Give the name of compound # 2: B
   Compound names must be less than 25 characters long!
   Give the name of compound # 3: P
   Compound names must be less than 25 characters long!
   Give the name of compound # 4: Q
   Compound names must be less than 25 characters long!
   Give the name of compound # 5: X

   Enter the number of streams: 2

>> global stoic
>> stoic=[-1 -2 1 1 0;-2 0 0 0 1]
stoic =
    -1    -2     1     1     0
    -2     0     0     0     1
>> chemeqs(stoic,cnms)
ans =
A  + 2B   --> P  + Q
2A   --> X
>> ns(1,:)=[10 25 0 0 0];
>> react([7 1],1,2)
>> showm(1,2,10,1)
Compound  Inlet    |  Outlet
  Stream         1 |         2
A             10.0 |       1.0
B             25.0 |      11.0
P              0.0 |       7.0
Q              0.0 |       7.0
X              0.0 |       1.0
Total         35.0 |      27.0

Nearly all of the code in react is there to make sure that the user knows what is wrong if the data given it is inconsistent. A simple (in MATLAB at least) matrix multiply in the last line of the program determines the amount of each compound that is produced by each reaction. It also sums this to determine the net effect of all the reactions on each compound.

Before executing react, the global matrix, stoic, must be specified. The matrix: stoic gives the stoichiometric coefficients for the reactions. Its shape is C columns by R rows, where C is the number of components and R is the number of reactions.

First we will look at a reactor in which ammonia is produced by the single reaction:

N2 + 3H2 --> 2NH3

Our compounds are numbered as:

    Component    Name     Formula
         1       Nitrogen        N2
         2       Hydrogen        H2
         3       Ammonia        NH3


We can create a data file with the compound and reaction data by:

   >> start301

   Copyright 1998 Rice University
   All rights reserved

   Welcome to CENG301's start301!!
   You have three choices, Please read them carefully
   Then click on the appropriate choice in the menu bar

   1: Click (1) to start a new session
   2: Click (2) to enter the name of a datafile from
      a previous session, in the current directory
   3: Click (3) to use compound names not in the CENG 301 database
      WARNING...if you hit (3) no compound data will be available



    <-- Choose (1) New Session


   Now choose from the above menu

  <-- Select Mass Balances only, since we do not need
                  to use compound data in this example

<-- Select CENG 301's Database

Input the name of your new file: test The output file name is: test Input the number of compounds: 3 The number of compounds is: 3 Enter the name of compound # 1: N2 Enter the name of compound # 2: H2 Enter the name of compound # 3: NH3 Enter the number of reactions: 1 Enter the coefficients for each compound in the same order that the compounds are listed. Coefficients for reactants should be Negative, and coefficients for products should be positive Enter the coefficients for each compound in reaction # 1 N2 H2 NH3 -1 -3 2 Do you want to check to see if the coefficients are correct? type "y" for yes or simply press enter to move on: y number of compounds = 3 number of reactions = 1 Here are your formulae... N2 H2 NH3 Give the number of compounds and number of reactions 3, 1 Give the formulae for each of the compounds N2 H2 NH3 Give the stoichiometric coefficients for reaction # 1 -1 -3 2 <-- One mol of N2 + 3 of H2 make 2 moles of NH3 -1.00000 -3.00000 2.00000 the equation is balanced <-- The equation is checked

A note on balancing equations:

By answering "yes" to checking the coefficients, a list of necessary data is outputted above the questions. For the number of compounds and coefficients, input the proper information. Our next suggestion is to cut and paste the list of formulae from above. This is done by highlighting the complete list and then pressing the middle mouse button in the appropriate area. The same cut and paste technique can be used to enter the stoichiometric coefficients; However, all data can still be inputted by hand. Also, when entering the coefficients, make sure to separate each entry with at least one space. If the equation is not balanced the first time, you will have only one additional chance to correct the coefficients.

   Your reactions are currently as follows:
    1) N2 + 3H2 --> 2NH3

   Type "y" to change an equation, or press "enter" to continue:

        <-- You should redo them if the equation is not balanced
        <-- Since the equation was balanced we press enter

   Here are your compounds' formulae and names:
   No. Formula Name
   ----------------------------------------
    1 N2 nitrogen
    2 H2 hydrogen
    3 NH3 ammonia

   Here are your reactions:
   ----------------------------------------
    1) N2 + 3H2 --> 2NH3

   Enter the number of streams: 2

   The variables for your compounds have now been created,
   you may continue, or come back later and reload the same data.

Let's take a look at our variables:

   >> who

   Your variables are:

   cnms   mw    ns    stoic
   form   nc    nst


1.3.9 Listing Equations with: chemeqs

Now let's look at the functions used by start301 to list the reaction equations. They may be used outside that program to see what you have put into the stoic array. The function chemeqs transforms the coefficients in an array like stoic into chemical equations. It uses the function halfeq to produce each side of a chemical equation. Help applied to the function halfeq gives:

   >> help halfeq

    halfeq	- Used in setstc to set up stoic
    function he=halfeq(st,fr)
    Argument List:
    Argument     Gives
       st     a numeric vector of coefficients
       fr     a character array of formulae
    halfeq is primarily used by chemeq.
    Ex: halfeq([1 3],['NH3';'H2O'])
    OKB


An example of its use:

   >> halfeq([1 3.5],['CH4';'O2 '])
   ans =
   CH4 + 3.5O2

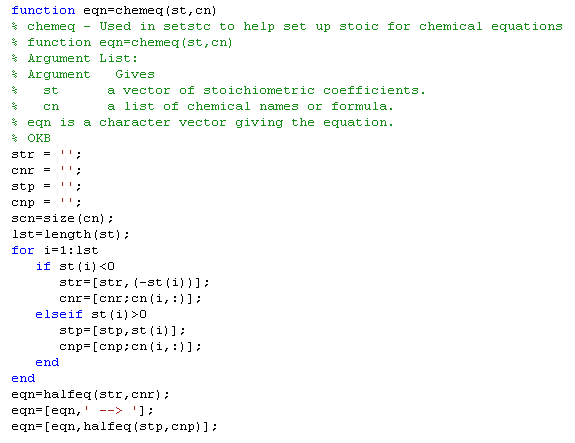

Now we can look at the function chemeq that gives one whole equation from a vector of stoichiometric coefficients and list of chemical names. Here is a listing of chemeq:


Here is an example of its use:

   >> chemeq([-1 2 0 -2 1],['CH4';'H2O';'N2 ';'O2 ';'CO2'])
   ans =
   CH4 + 2O2 --> 2H2O + CO2


Finally, here are the help notes for chemeqs. This program gives a whole set of equations from a stoichiometric array and a set of compound names.

>> help chemeqs
  chemeqs  - Shows the chemical equations defined by a stoichiometric array
  function eqs=chemeqs(st,cn)
  Argument List:
  Argument    Gives
    st      the matrix of stoichiometric coefficients
    cn      array of compound names
  chemeqs runs chemeq once for
     each column of st.
  The output in eqs is a list
  of the chemical equations.
  Ex. stoic=[-1 -3 2];
      cnms=cgrp('N2','H2','NH3');
      chemeqs(stoic,cnms)
  OKB



The function chemeqs may be used with any stoichiometric array and set of names as seen in:

   >> nms=cgrp('CH4','CO2','CO','H2','H2O');
   >> disp(chemeqs([-1 -1 2 2 0;0 1 -1 1 -1],nms))

    CH4 + CO2  --> 2CO  + 2H2
    CO  + H2O  --> CO2 + H2


A lot of work is done in constructing the equations, so be patient when you call it!

The Ammonia Reactor Example

We will return to the ammonia problem. If we assume that our feed has an excess amount of hydrogen over what is required by stoichiometry so that it is 22 mol % nitrogen and 78 mol % hydrogen, we can set up ns for a basis of 100 mols of feed per time:

>> ns(1,:)=[22 78 0]
   ns =
       22    78     0
        0     0     0


Remember that we said we would have two streams in our session with start301. Here is what we get for a reaction rate of 10 mols per time:

   >> react(10,1,2)
   >> showm(1,2,12,1)
   Compound    Inlet     |   Outlet
      Stream           1 |           2
   nitrogen         22.0 |        12.0
   hydrogen         78.0 |        48.0
   ammonia           0.0 |        20.0
   Total           100.0 |        80.0


Here is what we get if all the nitrogen reacts:

   >> react(22,1,2)
   >> showm(1,2,12,1)
   Compound    Inlet     |   Outlet
      Stream           1 |           2
   nitrogen         22.0 |         0.0
   hydrogen         78.0 |        12.0
   ammonia           0.0 |        44.0
   Total           100.0 |        56.0


Now we will consider a more complicated reactor involving six compounds and three reactions. Let's take the ammonia from the last reactor (after purifying it) and mix it with air and pass this mixture through a reactor in which we form nitrogen oxides and water. The following reactions will be considered:

               4NH3 + 7O2 --> 4NO2 + 6H2O
               2NO2       -->  2NO + O2
                     2NO2       -->   N2 + 2O2


Then we can set cnms and stoic by executing the start301 program.

   >> start301

   Copyright 1998 Rice University
   All rights reserved

   Welcome to CENG301's start301!!
   You have three choices, Please read them carefully
   Then click on the appropriate choice in the menu bar

   1: Click (1) to start a new session <-- Choose (1) New Session
   2: Click (2) to enter the name of a datafile from
      a previous session, in the current directory
   3: Click (3) to use compound names not in the CENG 301 database
      WARNING...if you hit (3) no compound data will be available



                             <-- Choose Mass Balances only
                             <-- Choose CENG 301's database

   Now choose from the above menu

   Input the name of your new file: test
   The output file name is: test

   Input the number of compounds: 6
   The number of compounds is: 6

   Enter the name of compound # 1: NH3
   Enter the name of compound # 2: O2
   Enter the name of compound # 3: N2
   Enter the name of compound # 4: NO2
   Enter the name of compound # 5: H2O
   Enter the name of compound # 6: NO
   Enter the number of reactions: 3

   Enter the coefficients for each compound in the same order that
   the compounds are listed.  Coefficients for reactants should be
   Negative, and coefficients for products should be positive
   Enter the coefficients for each compound in reaction # 1
    NH3  O2  N2  NO2  H2O  NO
    -4 -7 0 4 6 0
   Enter the coefficients for each compound in the same order that
   the compounds are listed.  Coefficients for reactants should be
   Negative, and coefficients for products should be positive
   Enter the coefficients for each compound in reaction # 2
    NH3  O2  N2  NO2  H2O  NO
    0 1 0 -2 0 2
   Enter the coefficients for each compound in the same order that
   the compounds are listed.  Coefficients for reactants should be
   Negative, and coefficients for products should be positive
   Enter the coefficients for each compound in reaction # 3
    NH3  O2  N2  NO2  H2O  NO
    0 2 1 -2 0 0

   Do you want to check to see if the coefficients are correct?
   type "y" for yes or simply press enter to move on:

          <-- We press enter because we know our reactions to be balanced.

   Your reactions are currently as follows:
     1)  4NH3  + 7O2    --> 4NO2  + 6H2O
     2)  2NO2   --> O2   + 2NO
     3)  2NO2   --> 2O2   + N2   <--Allows user to view reaction to
check their validity.
Type "y" to change an equation, or press "enter" to continue: <-- After seeing equations, the user is given an additional opportunity to change an equation. We press enter. Here are your compounds' formulae and names: No. Formula Name ---------------------------------------- 1 NH3 ammonia 2 O2 oxygen 3 N2 nitrogen 4 NO2 nitrogen dioxide 5 H2O water 6 NO nitric oxide Here are your reactions: ---------------------------------------- 1) 4NH3 + 7O2 --> 4NO2 + 6H2O 2) 2NO2 --> O2 + 2NO 3) 2NO2 --> 2O2 + N2 <-- Final set of reactions Enter the number of streams: 4 The variables for your compounds have now been created, you may continue, or come back later and reload the same data.


If we assume the air has the composition 21 mol % oxygen and the rest nitrogen and add 25 mol % excess air over that required for combustion of the ammonia to NO2 and water, we can set ns with flows of our ammonia and air streams mixed to form the feed to the reactor:


   >> ns(1,1)=100;
   >> o2=1.25*100*7/4;
   >> ns(2,2:3)=o2*[1 79/21];
   >> mix([1 2], 3)
   >> ns
   ns =
     100.0000         0         0         0         0         0
            0  218.7500  822.9167         0         0         0
     100.0000  218.7500  822.9167         0         0         0
            0         0         0         0         0         0

Now if we react all the ammonia to form NO2 and neglect the competing reactions, we get:

   >> react([25 0 0],3, 4)
   >> showm(3,4,12,4)
   Compound             Inlet     |   Outlet
               Stream           3 |           4
   ammonia               100.0000 |      0.0000
   oxygen                218.7500 |     43.7500
   nitrogen              822.9167 |    822.9167
   nitrogen dioxide        0.0000 |    100.0000
   water                   0.0000 |    150.0000
   Total                1141.6667 |   1116.6667


A partial conversion of the ammonia and appreciable amounts of the other reactions may be seen in:

   >> react([20 5 1],3, 4)
   >> showm(3,4,12,4)
   Compound             Inlet     |   Outlet
               Stream           3 |           4
   ammonia               100.0000 |     20.0000
   oxygen                218.7500 |     85.7500
   nitrogen              822.9167 |    823.9167
   nitrogen dioxide        0.0000 |     68.0000
   water                   0.0000 |    120.0000
   nitric oxide            0.0000 |     10.0000
   Total                1141.6667 |   1127.6667



Let's enter this last example into our Flow and Reaction Rate Tables:

Reactor with 4 streams and 6 components

Table of Molar Flow Rates

Comp No.
Name

1
NH3

2
O2

3
N2

4
NO2

5
H2O

6
NO

Total

Stream
Number

From Unit*

To Unit*

1

Feed

Mixer

100

0

0

0

0

0

100

2

Feed

Mixer

0

218.75

822.92

0

0

0

1041.97

3

Mixer

Reactor

100

218.75

822.92

0

0

0

1141.67

4

Reactor

Product

20

85.75

823.92

68

120

10

1127.67


Now let's fill in the Reaction Rate Table. There is only one reactor in our system, but there are three reactions to give the rates for.

Table of Reaction Rates

Reaction Number

Reaction

Molar Rates

1
4NH3 + 7O2 --> 4NO2 + 6H2O
20
2
2NO2 --> 2NO + O2
5
3
2NO2 --> N2 + 2O2
1


Section 1.3: Part 1, Part 2, Part 3


[Go to previous section: 1.2| Go to next section: 1.4]
[ Go to CENG301 Homepage| CENG301 Notes Table of Contents]

Last modified July 22, 1998.
