5.7 The Reactor function: reactr



Here is a listing of reactr:

  function rs=reactr(ipr,ipp,imr,icr,cpr,spp,in)
  % reactr: calculates reaction rates for competing reactions
  % (use with react)
  % rs=reactr(ipr,ipp,imr,icr,cpr,spp,in)
  %  Argument  Gives
  %  ipr      index of primary reactant,
  %  ipp      index of primary product,
  %  imr      index of main reaction,
  %  icr      index of competing reaction,
  %  cpr      conversion of primary reactant,
  %  spp      selectivity to primary product,
  %  in       index of inlet stream,
  % reactr returns the reaction rates to be used in REACT in rs.

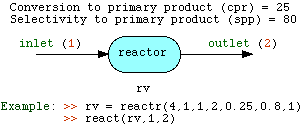

  % For additional help and picture, see PICREACTR
  % See also IREACTRF, IREACTRX for interactive versions
  % Example: >> rv=reactr(4,1,1,2,0.25,0.8,1);
  %          >> react(rv,1,2)
  % OKB, TYLC
  global ns stoic
  sstoic=size(stoic);
  r=zeros(1,sstoic(1));
  st=[stoic(imr,ipr),stoic(icr,ipr);stoic(imr,ipp),stoic(icr,ipp)];
  d1=st(1,1)*st(2,2);
  d2=st(2,1)*st(1,2);
  den=d1-d2;
  r(imr)=(d1-(spp*d2))/(den*st(1,1));
  r(icr)=st(2,1)*(spp-1)/den;
  rs=(-cpr)*(ns(in,ipr))*r;

Also see1.5.3 The Reactor Function: reactr. Back to Chapter 5.
