Forced Convection

Section 9.8 in Bird, Stewart and Lightfoot

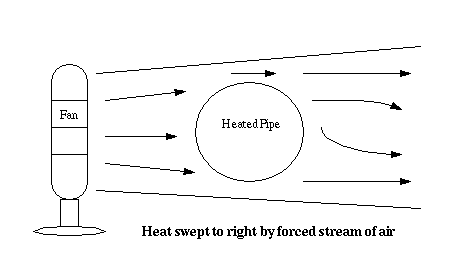

Forced convection in nonisothermal systems. (Figure 9.8-1 from BS&L)

Figure 1

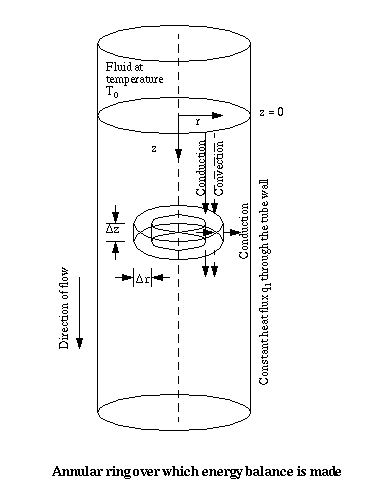

Laminar tube flow with annular ring. (Figure 9.8-2 from BS&L)

Figure 2

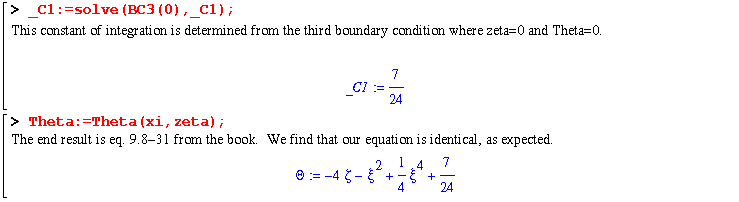

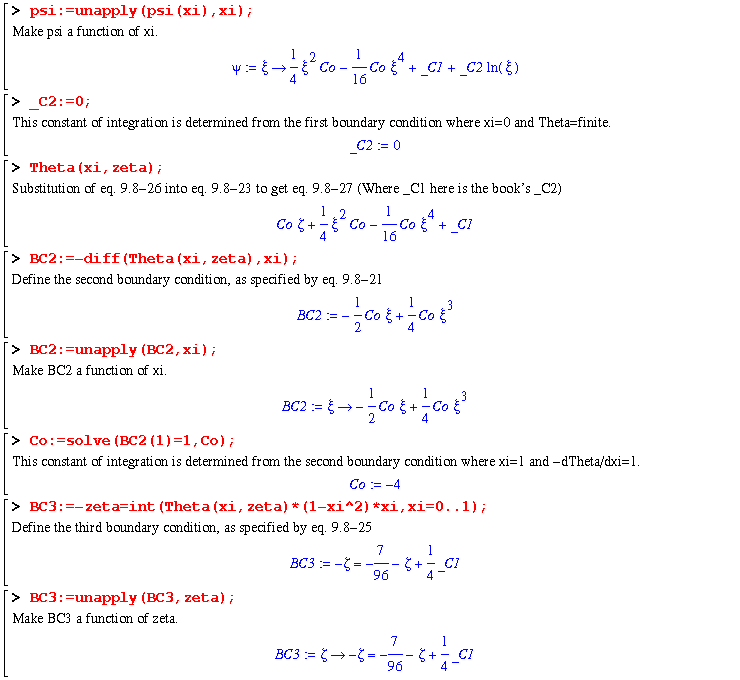

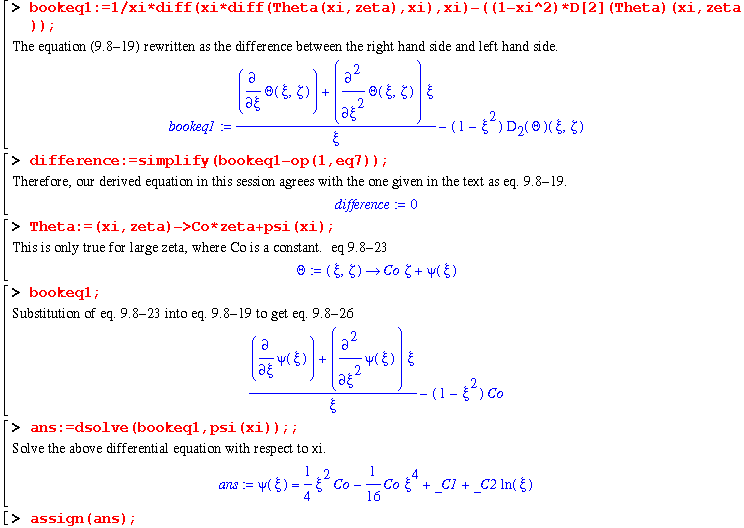

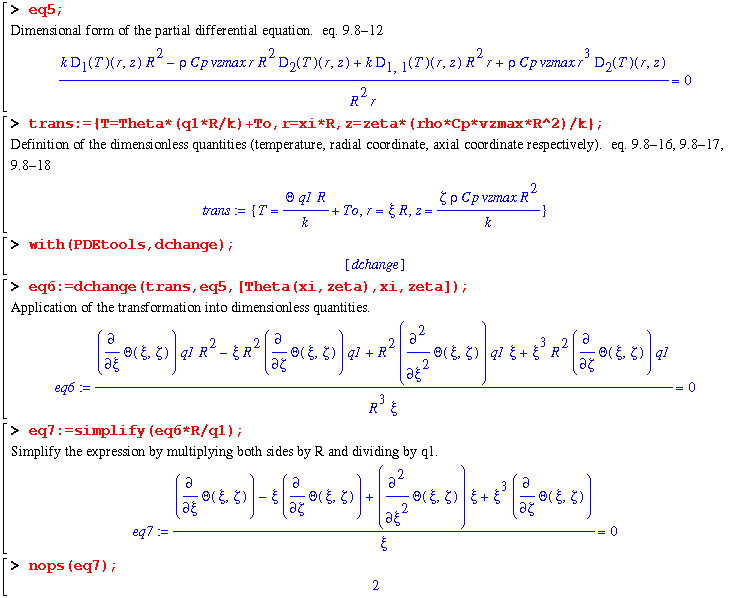

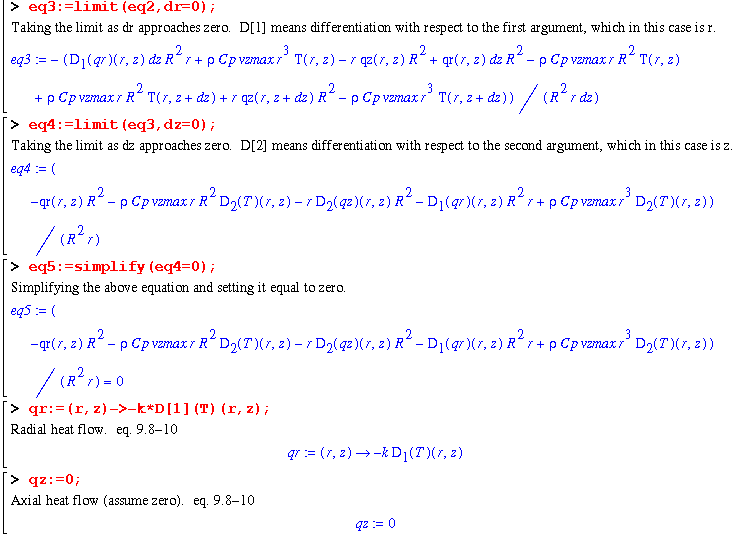

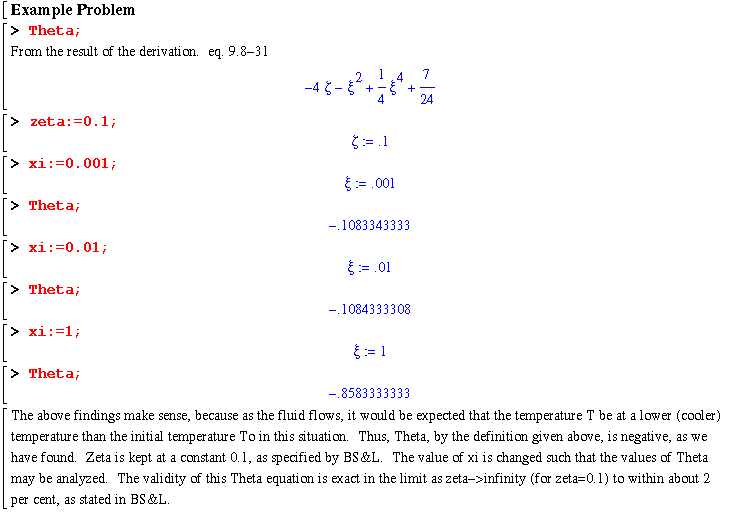

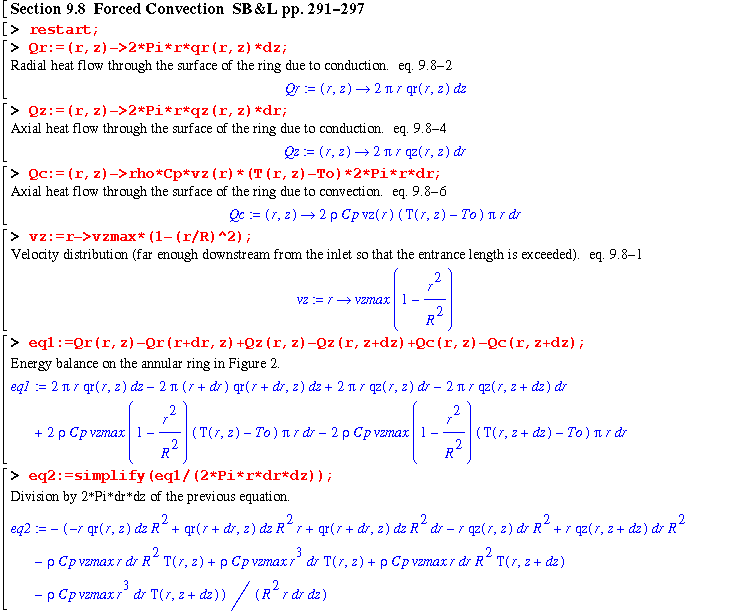

Maple V Code
