Figure 14.3-1

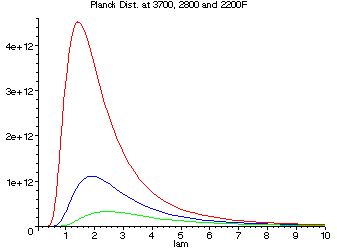

> restart; In this problem, we are going to generate figure 14.3-1 > qble:=(lambda,T)->2*Pi*c^2*h/(lambda^5*(exp(c*h/ (lambda*kappa*T))-1)); 14.3-7 > kappa:=1.3805e-16*erg/K; h:=6.624e-27*erg*s; c:=2.99793e10*cm/s; > qble(lambda,T); > evalf(qble(2e-4*cm,2000*K)); > unit:=erg/(cm^3*s); > evalf(qble(2e-4*cm,2000*K)/unit); We need to do this since plot wants to give blanks if the units are left in place. > plot({qble(lam*1e-4*cm,2038*K)/unit,qble(lam*1e-4*cm,1538*K) /unit,qble(lam*1e-4*cm,1204*K)/unit},lam=5e-2...10, title=`Planck Dist. at 3700, 2800 and 2200F`, xtickmarks=10,color=[red,green,blue]); plot of qble at three temperatures, note that the temperatures have been converted from F to K
We can also compute the integration at a constant T numerically without changing the variable of integration. > qbe1000:=evalf(int(qble(lambda*cm,1000*K), lambda=0...infinity));
> qbe1:=evalf(int(qble(lambda*cm,1*K), lambda=0...infinity));
