Section 18.7 Diffusion and Chemical Reaction inside a porous Catalyst: "The Effectiveness Factor" > restart; > A:=r->4*Pi*r^2; > WA:=r->A(r)*NAr(r); > eq:=WA(r)-WA(r+dr)+RA(r)*A(r)*dr; > de:=limit(eq/(A(r)*dr),dr=0); Compare with eq. 18.7-3 > NAr:=r->-DA*D(cA)(r); eq. 18.7-4: note we must assume constant c and neglect convection. > de; Compare to 18.7-5 > RA:=r->-kpp*a*cA(r); Volumetric rate of production of cA for 1st order rxn. a is the surface area in the catalyst per volume of catalyst. > s:=dsolve({de,cA(R)=cAs,cA(0)=finite},cA(r)); > assign(s); > cA:=unapply(cA(r),r); A little complicated, but we can deal with it. > cA:=simplify(cA(r),assume=positive); This agrees with eq. 18.7-9
> cA:=unapply(cA,r); > WAs:=WA(R); Eq. 18.7-10 > combine(simplify(%,assume=positive)); Oh well, it was worth a try. > rt:=sqrt(kpp*a/DA);dif:=WAs-4*Pi*R*DA*cAs*(1-rt*R*coth(rt*R)): Subtracting off 18.7-11 > simplify(dif,assume=positive); 18.7-11 is OK.
> VP:=4*Pi*R^3/3;SP:=4*Pi*R^2; volume and surface area of the pellet > WA0:=VP*a*(-kpp*cAs); > etaA:=WAs/WA0; > kpp:=(Lambda*SP/VP)^2*DA/a; Lambda=sqrt(kpp*a/DA)*VP/SP > etaA; > etaA:=simplify(%,assume=positive);
> simplify(etaA-(3*Lambda*coth(3*Lambda)-1)/(3*Lambda^2));

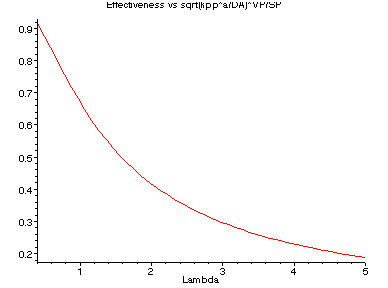

> plot(etaA,Lambda=0.4....5,title="Effectiveness vs sqrt(kpp*a/DA)*VP/SP");
